SFS280N10PF
Classification:
General Description
FSMOS® MOSFET is based on Oriental Semiconductor’s unique device design to achieve low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics. The high Vth series is specially designed to use in motor control systems with driving voltage of more than 10V.
Features
|
|
Applications
|
|
Key Performance Parameters
|
Parameter |
Value |
Unit |
|
VDS |
100 |
V |
|
ID, pulse |
800 |
A |
|
RDS(ON), max @ VGS =10V |
2.1 |
mΩ |
|
Qg |
245 |
nC |
|
PD |
450 |
W |
Marking Information
|
Product Name |
Package |
Marking |
|
SFS280N10PF |
TO22 |
SFS280N10P |

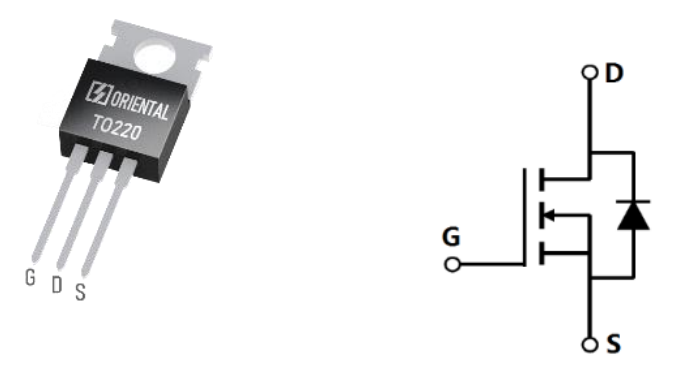

Package & Pin Information
Performance Parameters
Package
TO-220
Cfg.
N
VDS (V)
100
VGS (V)
20
ID (A) && Tc=25℃
340
Ron (Ω) && 10V
0.0021
