OSC60N65HF
Classification:
General Description
OSC60N65HF uses advanced Oriental-Semi’s patented Trident-Gate Bipolar Transistor (TGBTTM) technology to provide extremely low VCE(sat), low gate charge, and excellent switching
performance. This device is suitable for mid to high range switching frequency converters.
Features
|
|

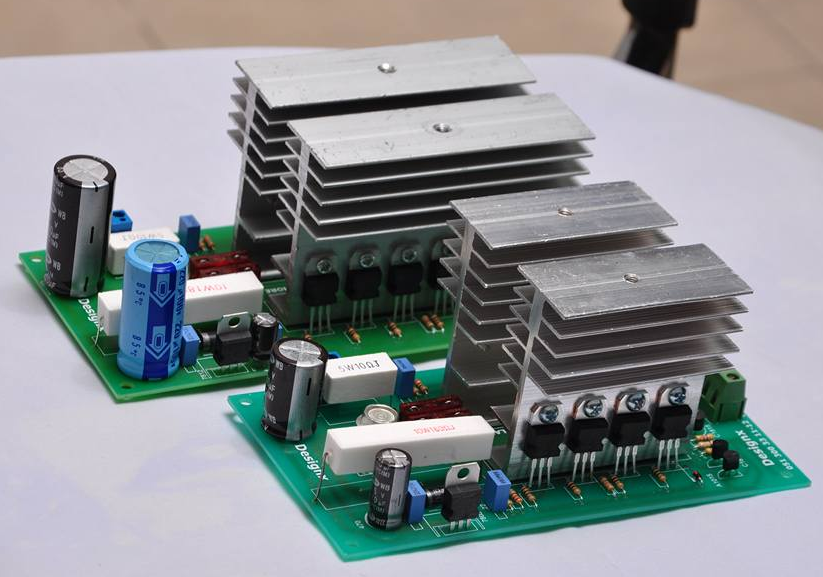

Applications
|
|
Key Performance Parameters
|
Parameter |
Value |
Unit |
|
VCES, min @ 25°C |
650 |
V |
|
Maximum junction temperature |
175 |
°C |
|
IC, pulse |
240 |
A |
|
VCE(sat), typ @ VGE=15V |
1.75 |
V |
|
Qg |
108 |
nC |
Marking Information
|
Product Name |
Package |
Marking |
|
OSC60N65HF |
TO247 |
OSC60N65H |

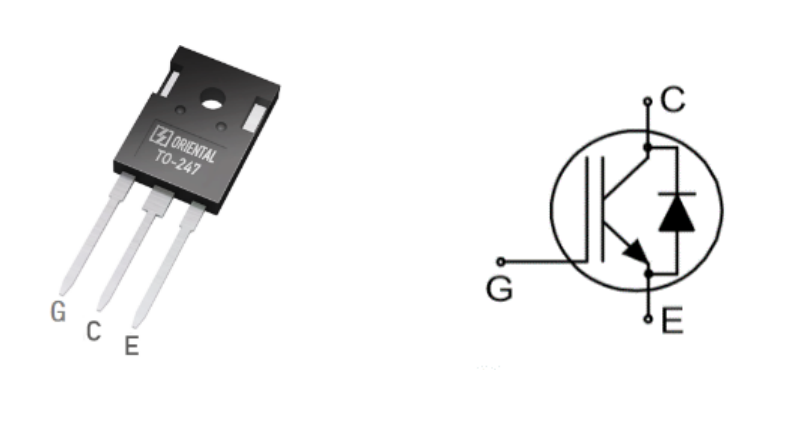

Package & Pin Information
Performance Parameters
Package
TO-247
VGE (V)
20
BV (V)
650
IC (A) && Tc=25℃
86
Vth_typ(V)
4.5
Von(V) && Vcesat
2.1
Von(V) && Vf
1.5
