OST50N65KTMF
Classification:
General Description
OST50N65KTMF uses advanced Oriental-Semi’s patented Trident-Gate Bipolar Transistor (TGBTTM) technology to provide extremely low VCE(sat), low gate charge, and excellent switching
performance. This device is suitable for mid to high range switching frequency converters.
Features
|
|
Applications
|
|
Key Performance Parameters
|
Parameter |
Value |
Unit |
|
|
VCES, min @ 25°C |
650 |
V |
|
|
Maximum junction temperature |
175 |
°C |
|
|
IC, pulse |
222 |
A |
|
|
VCE(sat), typ @ |
VGE =15V |
1.65 |
V |
|
Qg |
78 |
nC |
|
Marking Information
|
Product Name |
Package |
Marking |
|
OST50N65KTMF |
TO263 |
OST50N65KTM |

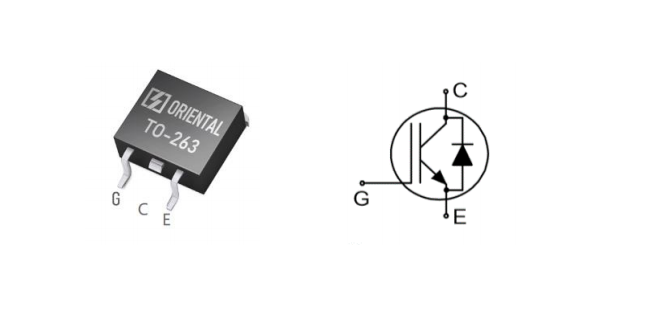

Package & Pin Information
Performance Parameters
Package
TO-263
VGE (V)
20
BV (V)
650
IC (A) && Tc=25℃
80
Vth_typ(V)
5.0
Von(V) && Vcesat
1.85
Von(V) && Vf
2.05
